Casting Application
Investment Casting, Gravity Casting, Die Casting, Sand Casting
Investment Casting Process

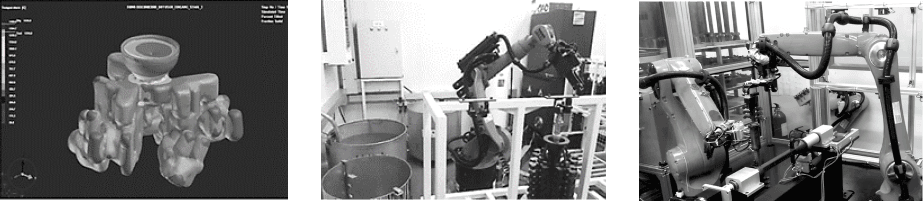

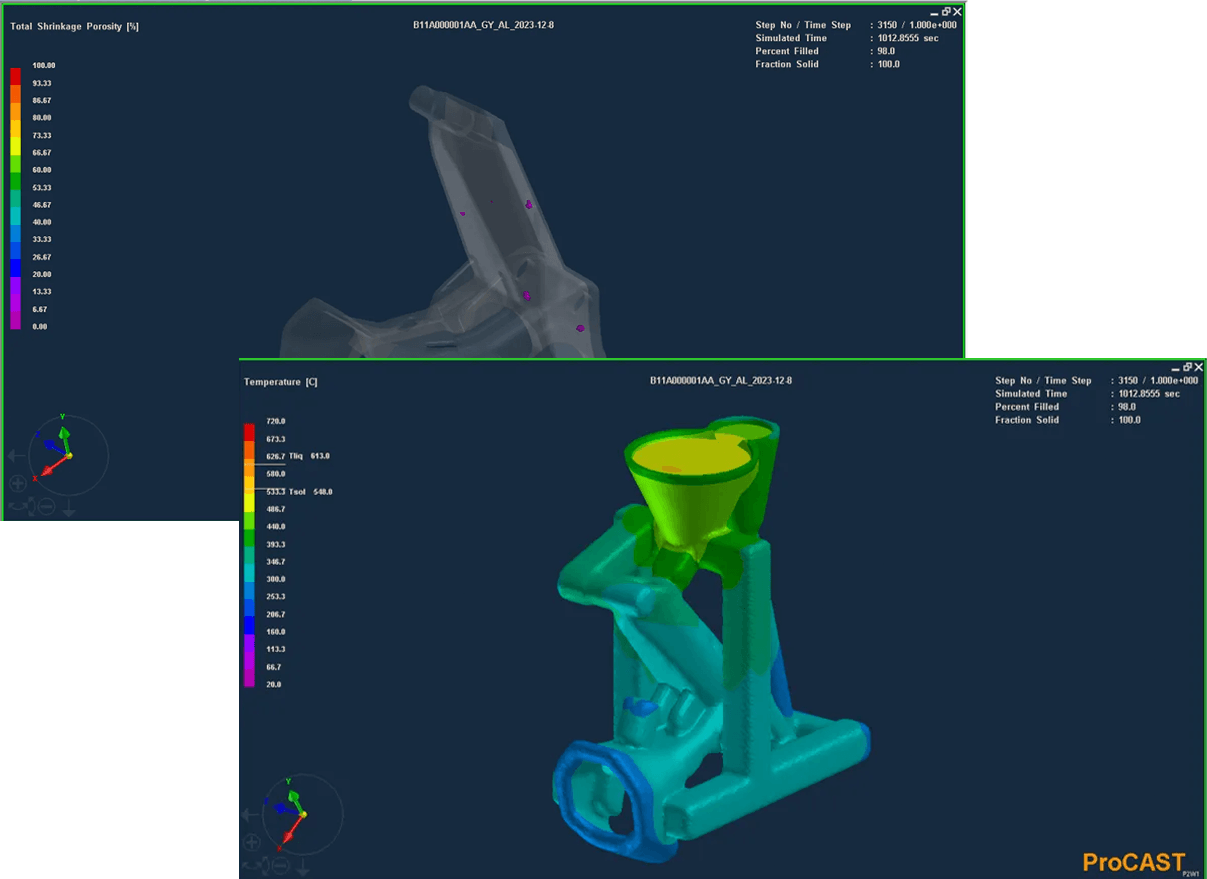

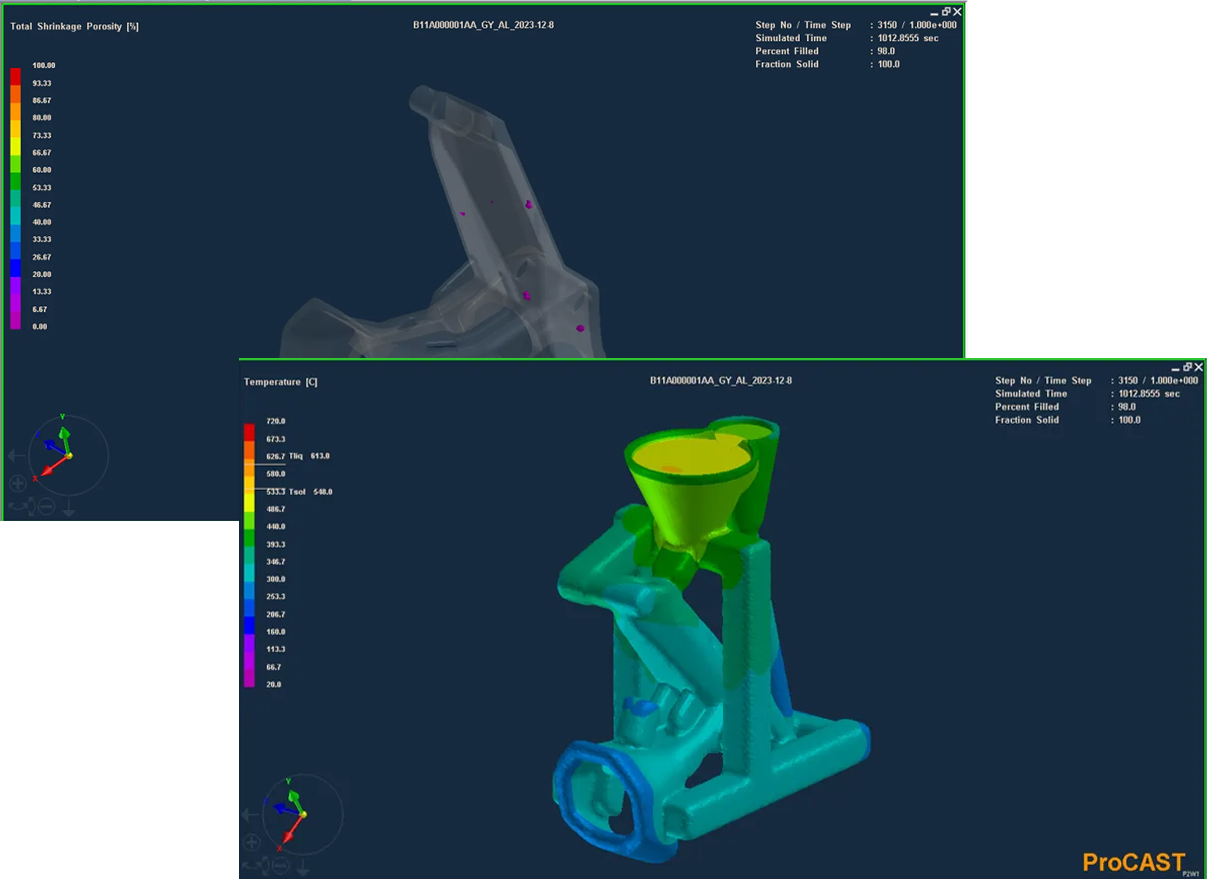

We Provide PRO-Cast Simulation, Design and Consulting Services!

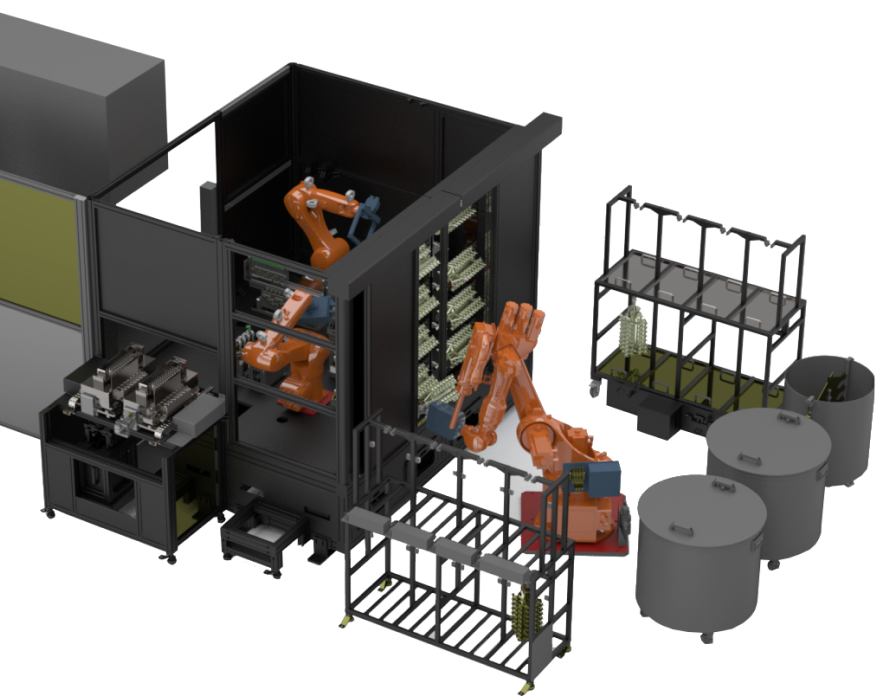

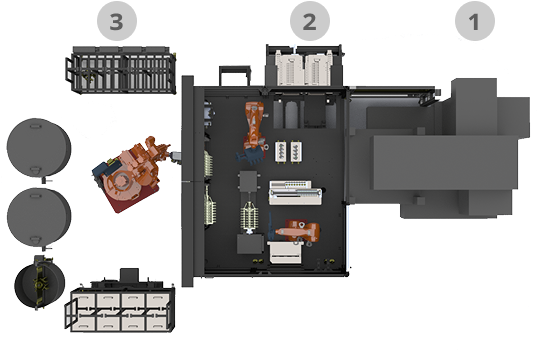

WAX Process
The only mass-production wax mold automatic assembly system in Asia.

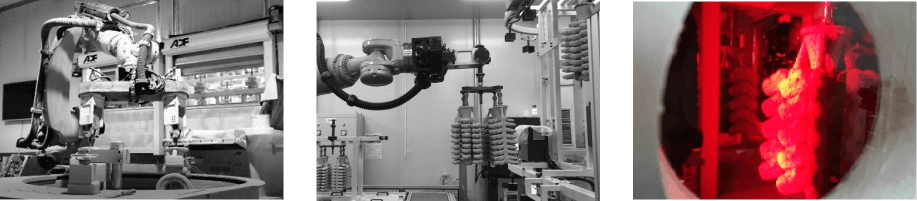

Shell Process

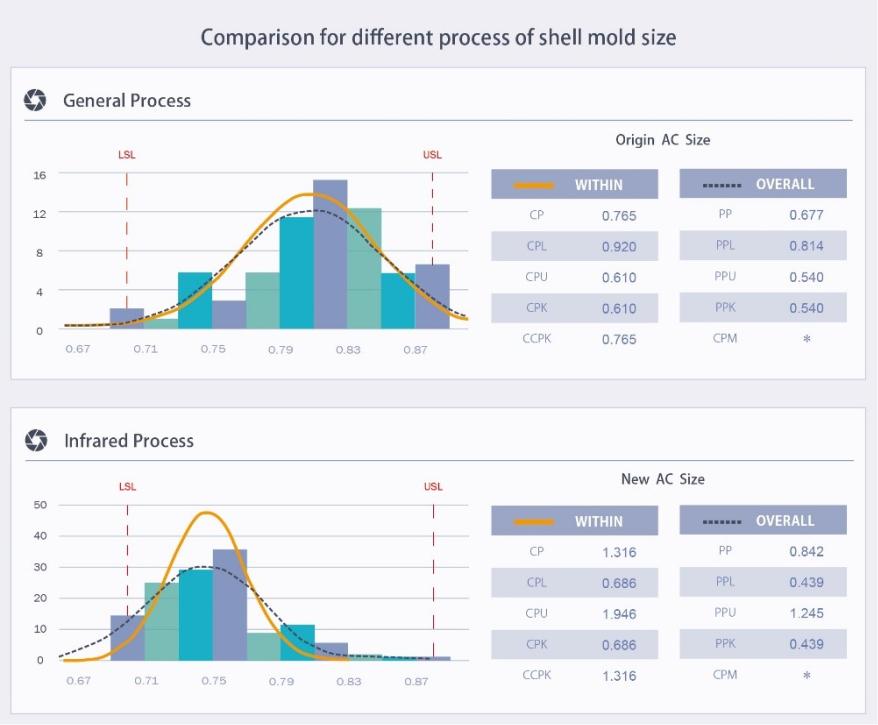

- DSA infrared rapid drying system can complete the drying in only 6 hours! Compared to the traditional shell mold drying process that takes 50 hours!

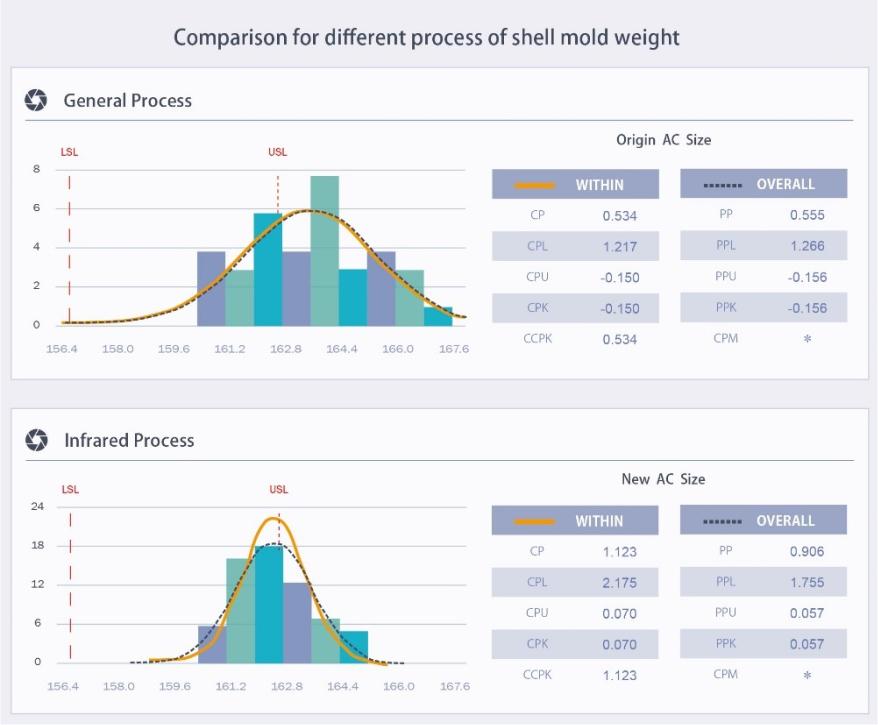

- Ensures stability of the cast parts' dimensions, weight, and quality.
The world’s only mass-production rapid drying shell mold system, with over ten years of factory production verification.

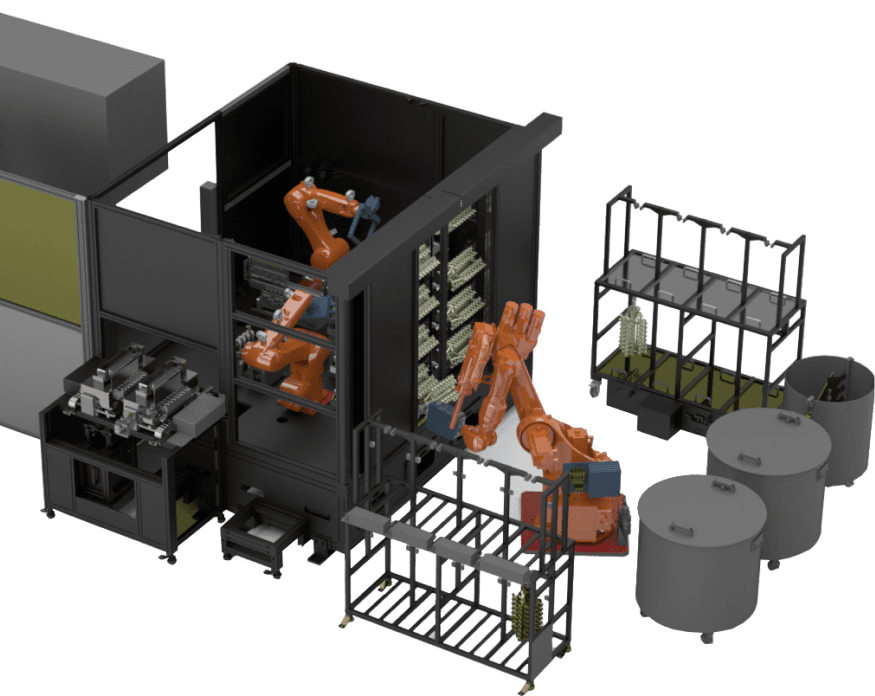

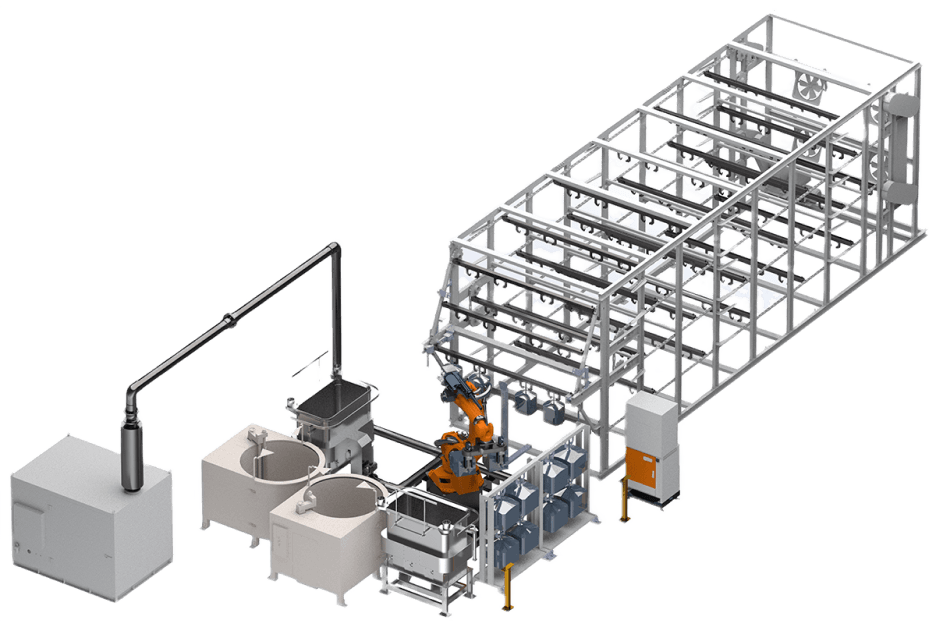

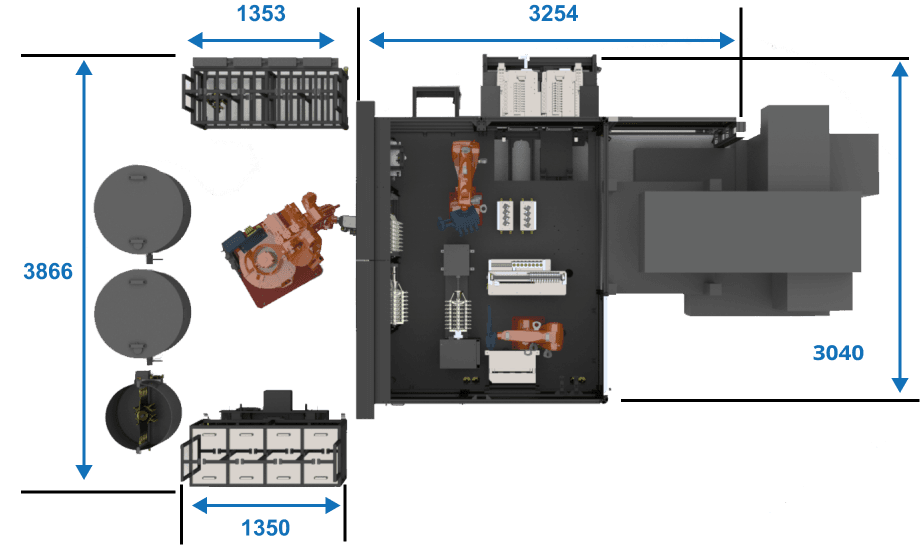

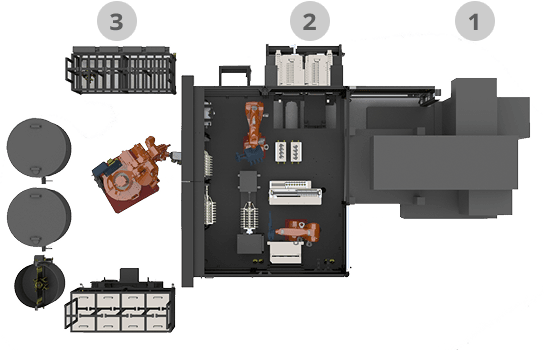

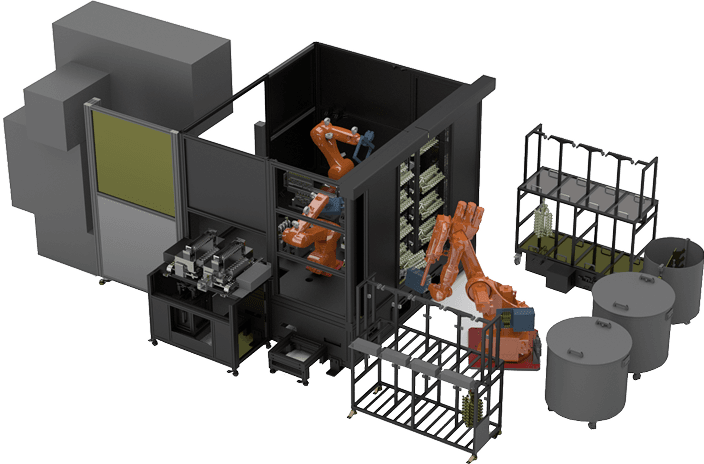

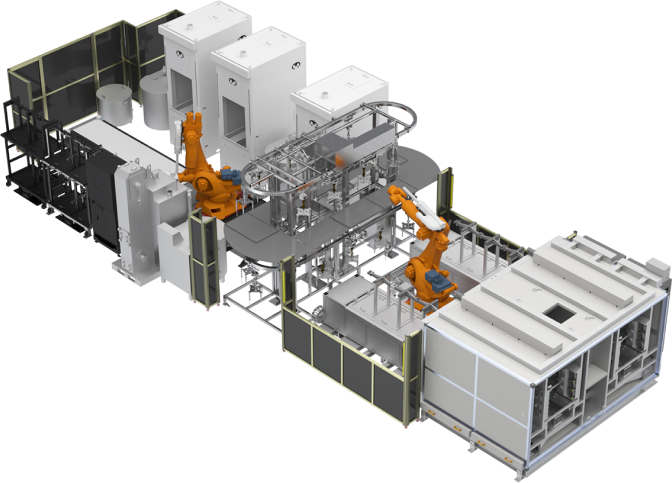

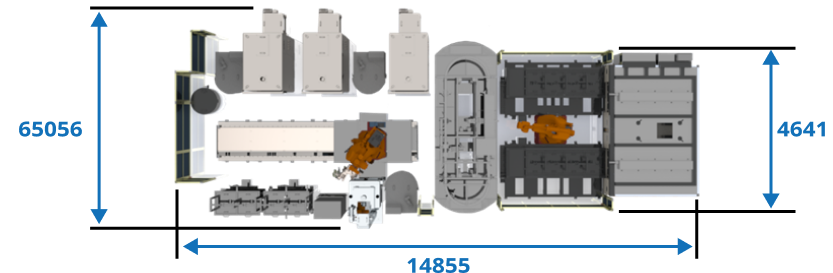

Mass Production Shell Mold Flexible Manufacturing System
- Sand Coating Tank with Automatic Filtrationand Sand Replenishment Functions
- Loading and Unloading Station
- Slurry and Sand Coating Robot
- 3D Rod-Type Conveyor
- Blower
- Slurry Tank (Optional Automatic Slurry Replenishment Function)

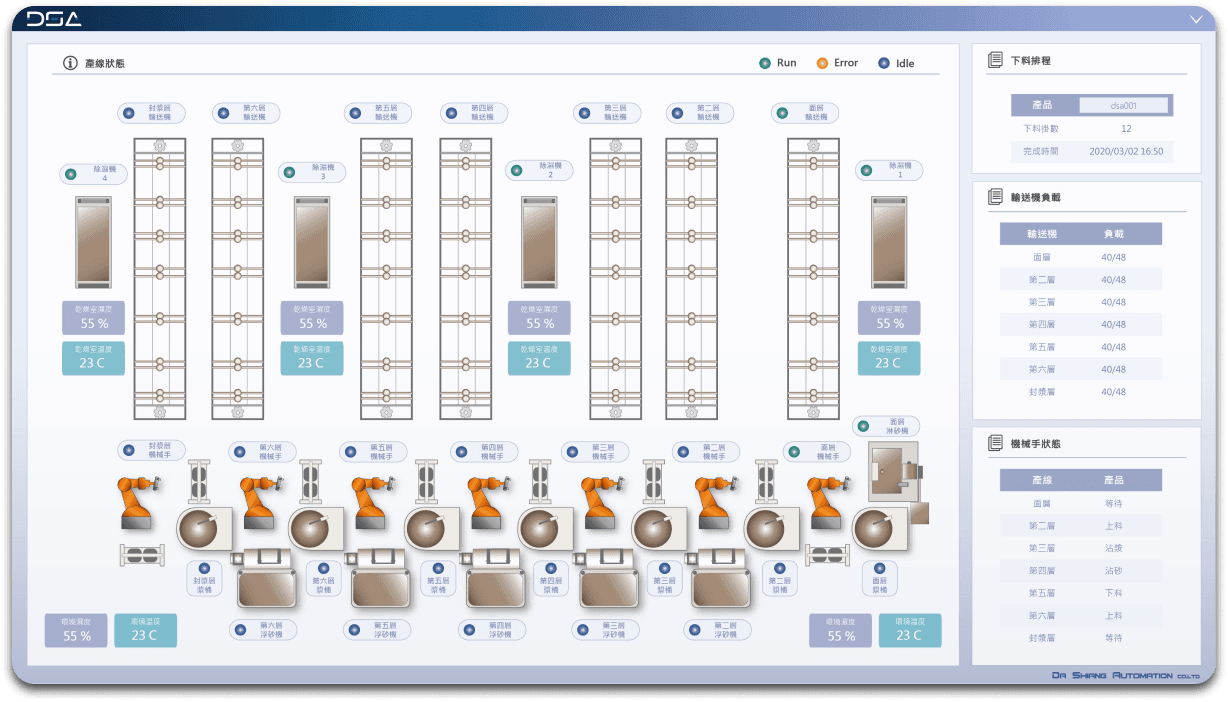

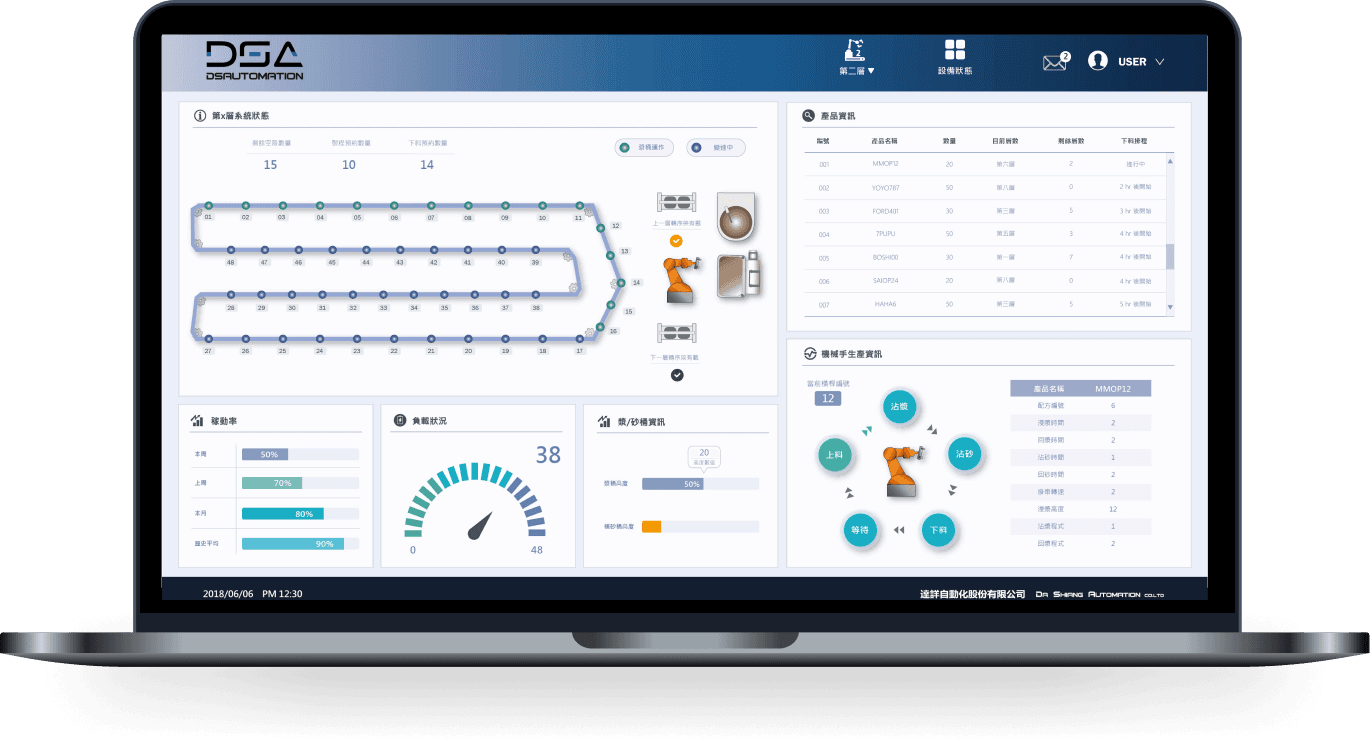

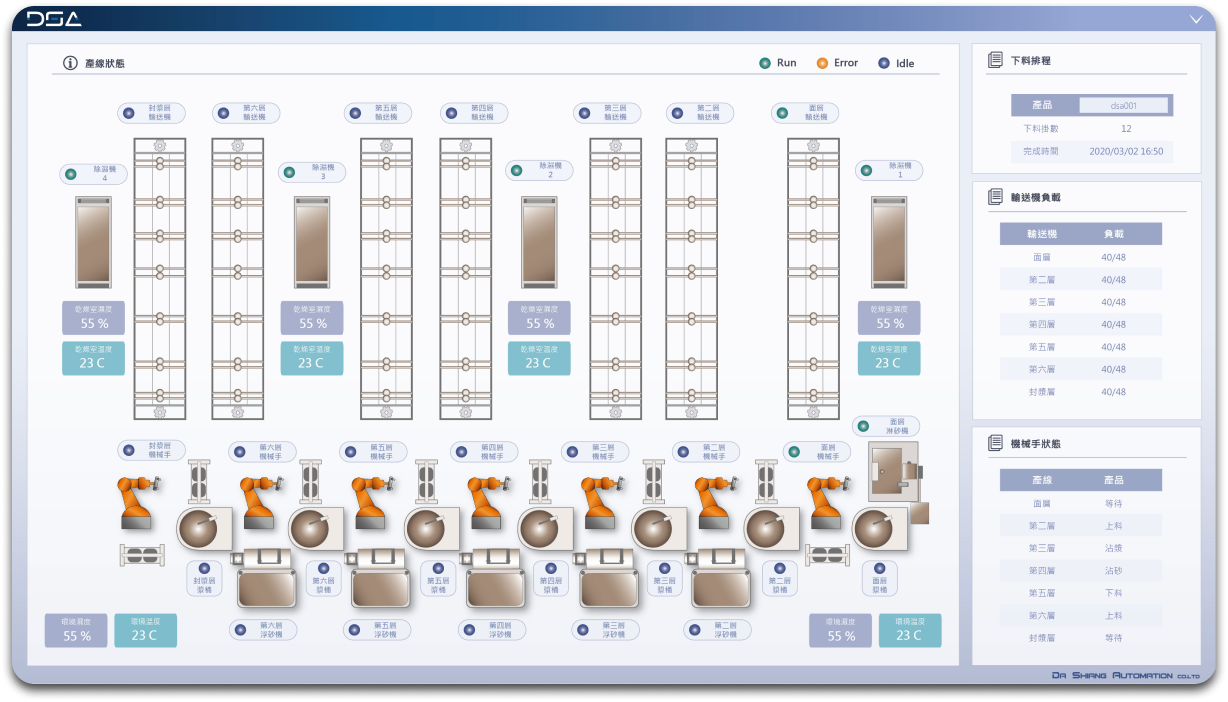

- A user-friendly human-machine interface system provides operators with a simplified platform.

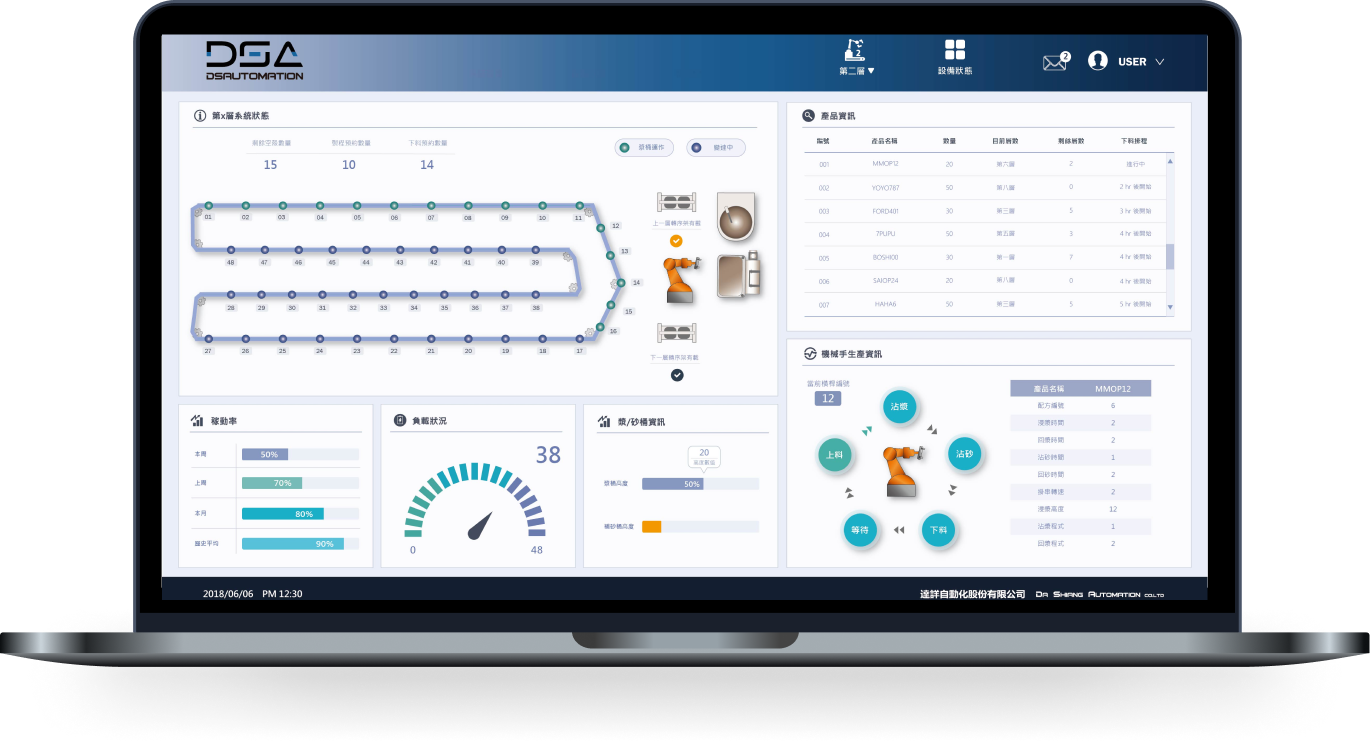

- Web Interface: Enables production line status monitoring throughout the facility.
- Equipment Health Check and Alerts: Supports maintenance personnel in keeping equipment in optimal condition.
- Fault History Analysis: Helps identify frequent failures and areas with longer repair times, enabling adjustments to maintenance SOPs and improving equipment performance.
- Material Tracking and Recording: Enables production management to monitor key aspects of shell mold production and control errors when quality issues arise.
- Production History Recording: RFID tagging of shell molds facilitates tracking of subsequent process history.

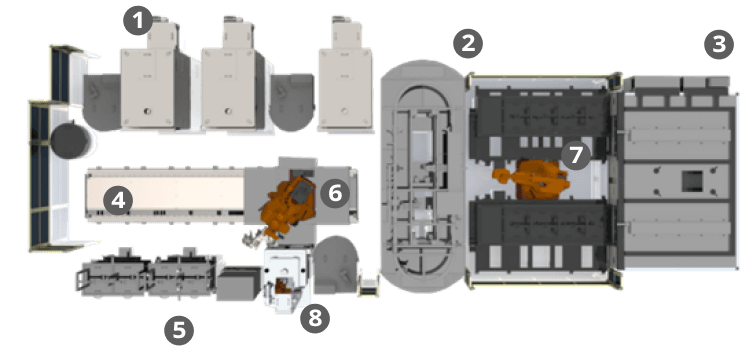

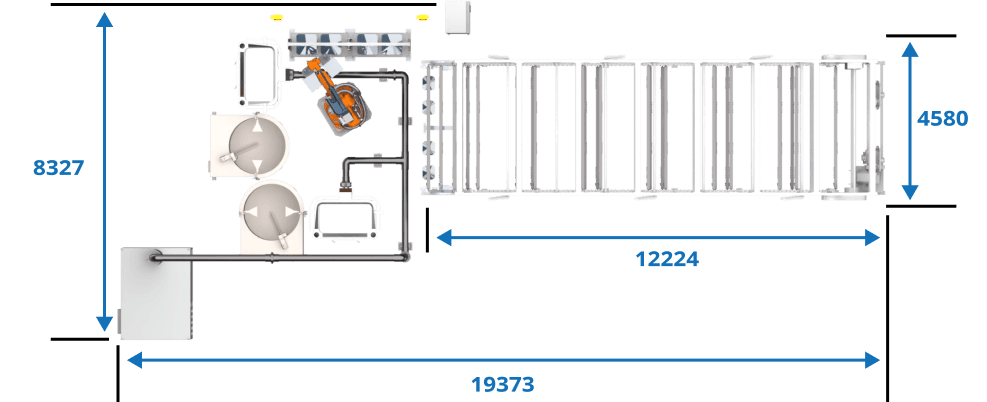

- Sand Dipping Machine with Automatic Sand Replenishment
- Trolley Conveyor
- Infrared Rapid Drying System
- Robot Linear Axis Track
- Loading and Unloading Station
- Slurry and Sand Dipping Robot
- Loading and Unloading Robot
- Slurry Tank
Optional：Automatic Slurry Replenishment

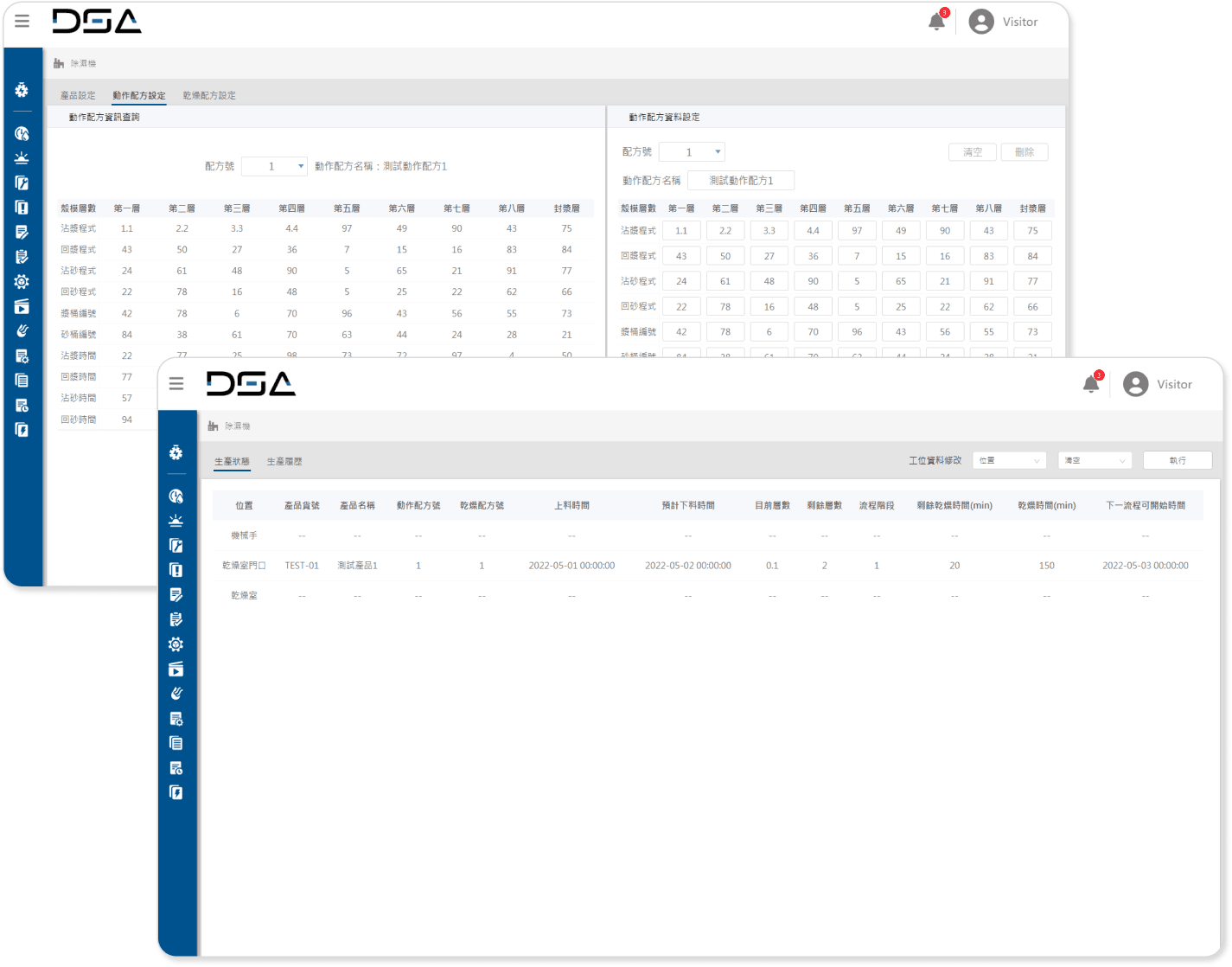

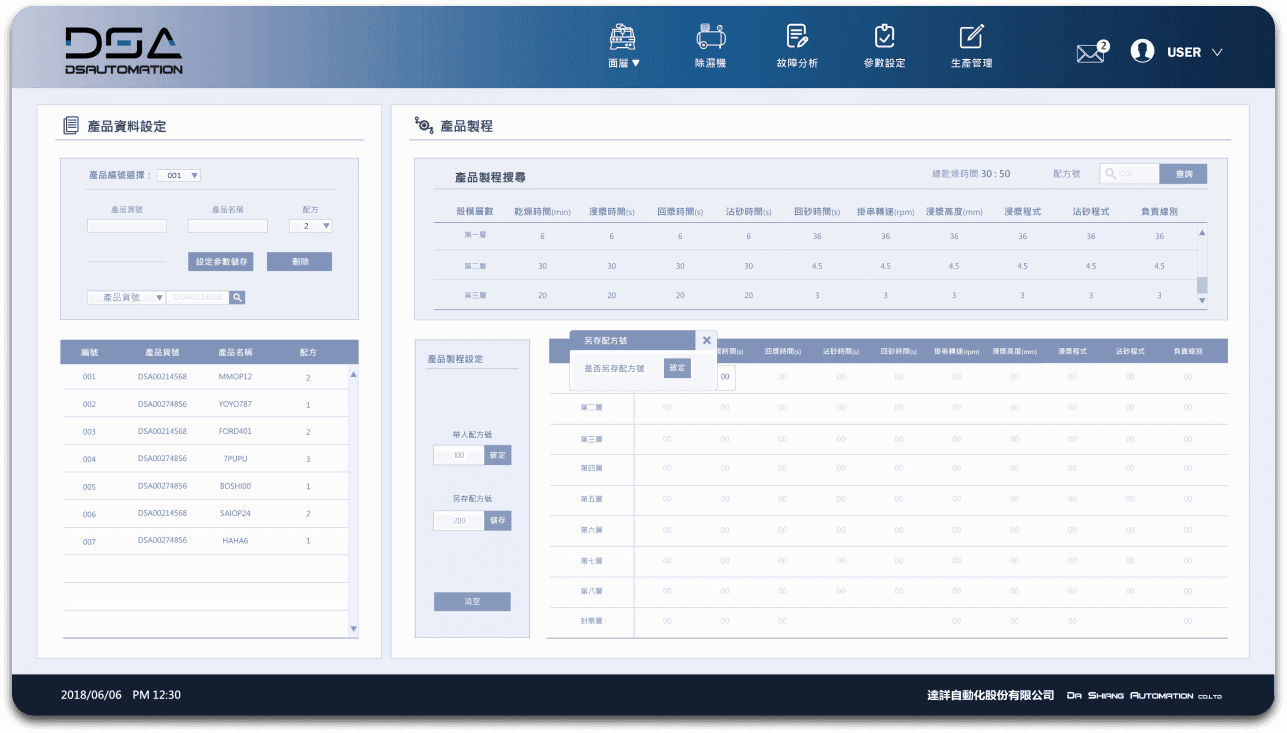

- Access Control: Ensures process parameters are protected from unauthorized modifications and safeguards critical process data.
- Key Information: Assists operators in verifying production status.
- Process Parameter Management: Configures detailed action workflows.
- Production Management: Displays production status.
- User-Friendly Query Interface

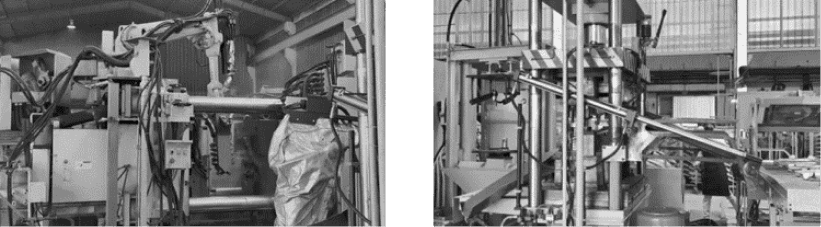

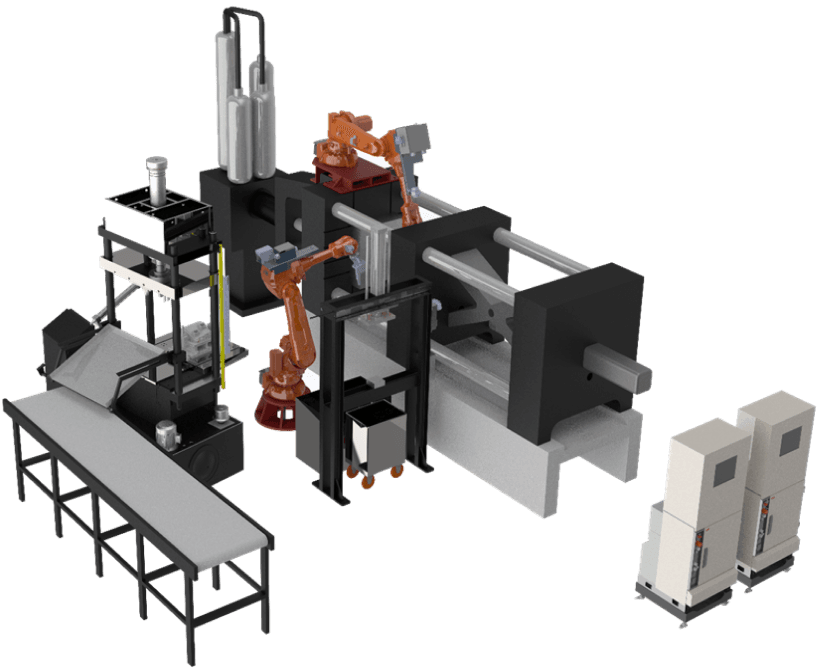

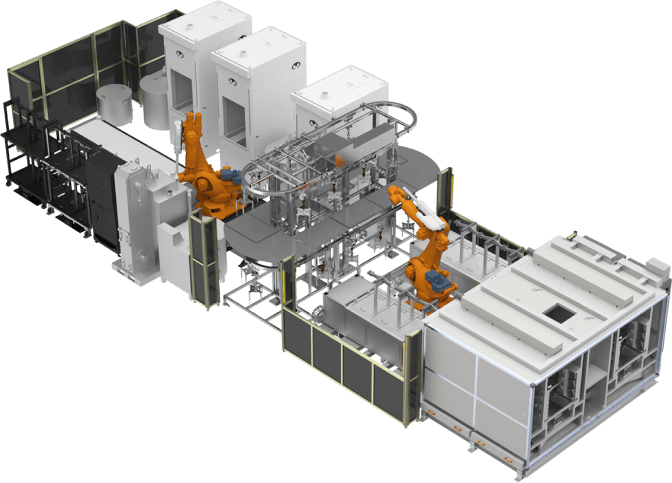

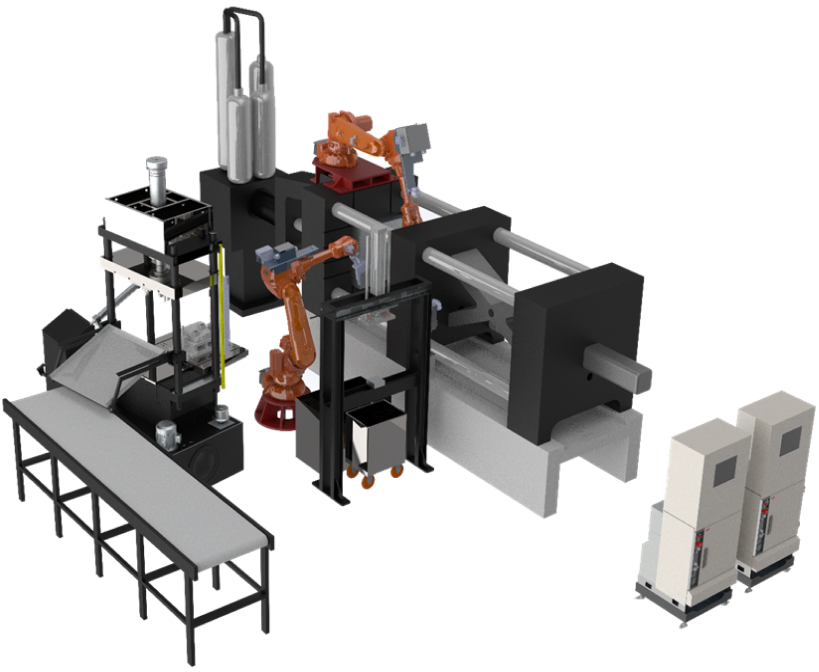

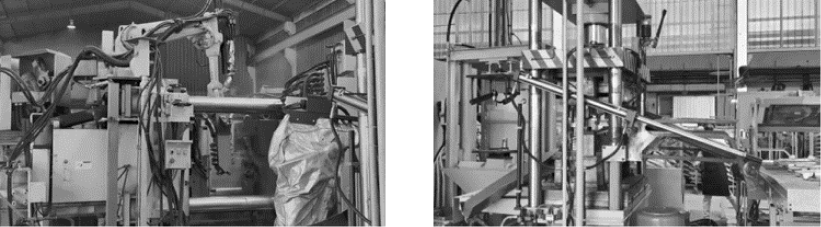

Die Casting Process

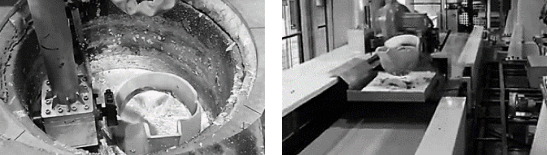

Gravity Casting Process

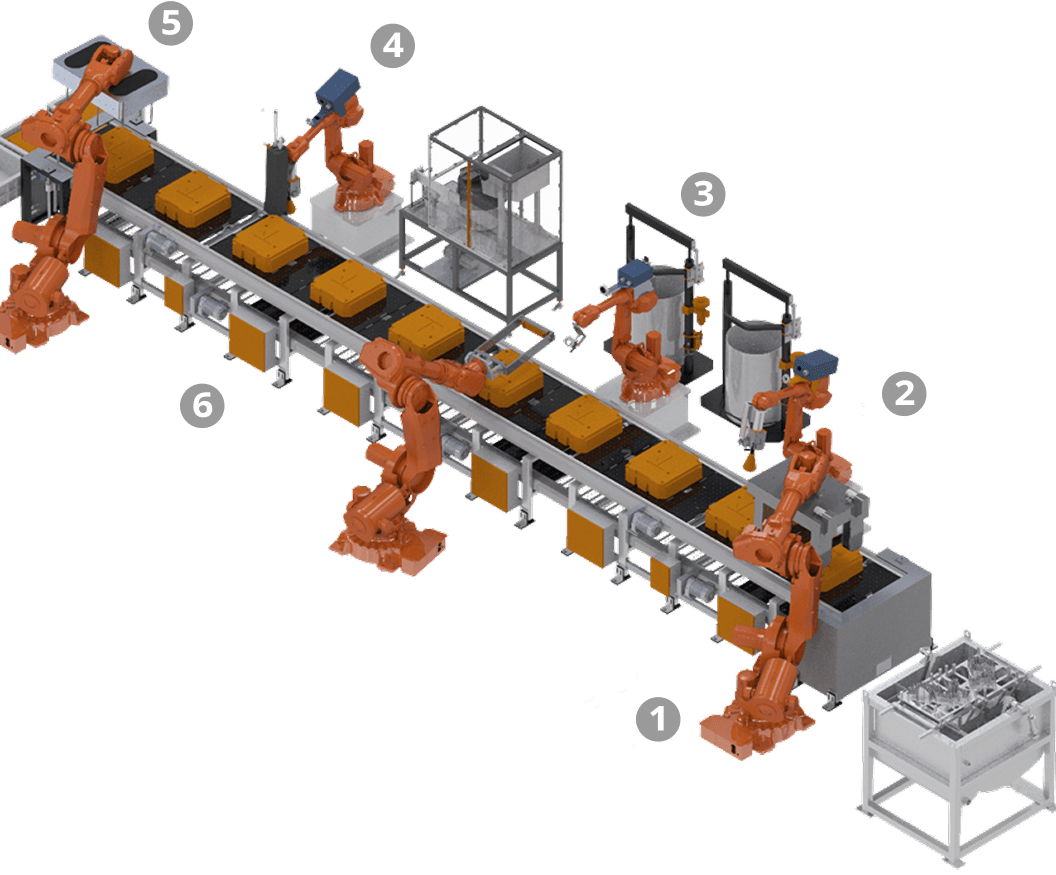

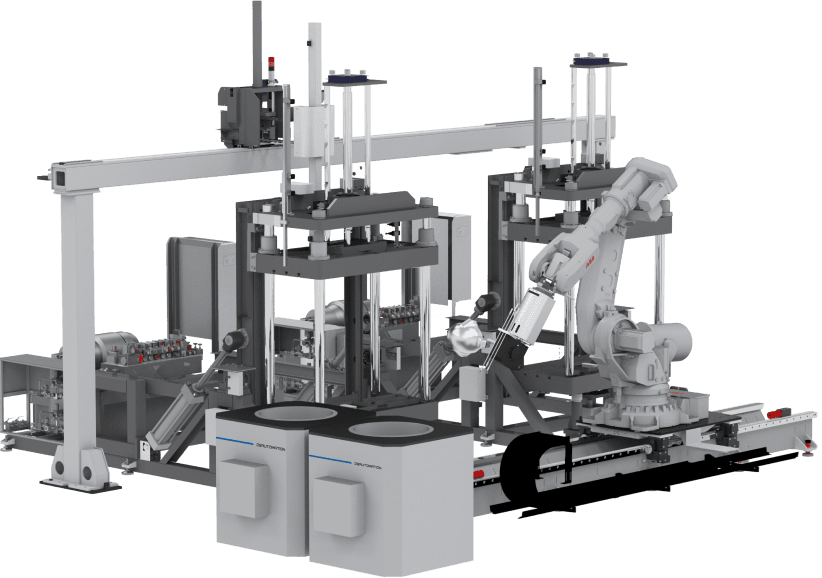

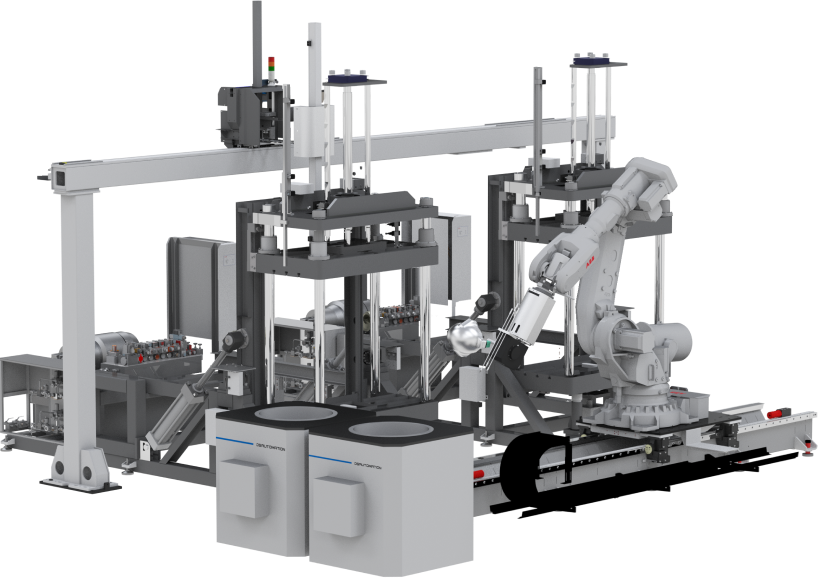

Sand Casting Process
1
Sand Core Making Machine. Unloading & Coating.
2
Laser Marking
3
Sand Core dispensing, Assembly, Loading & Unloading
4
Automatic screw locking
5
Sand Core Unloading to Sand Box
6
Foundry Conveyor
