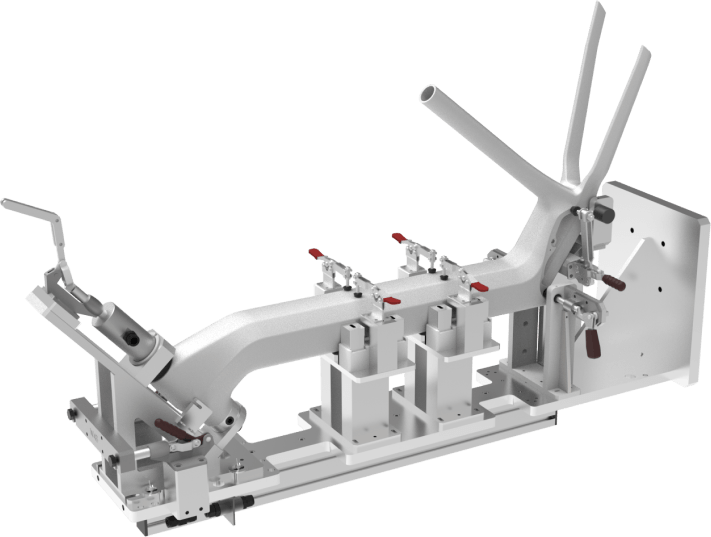

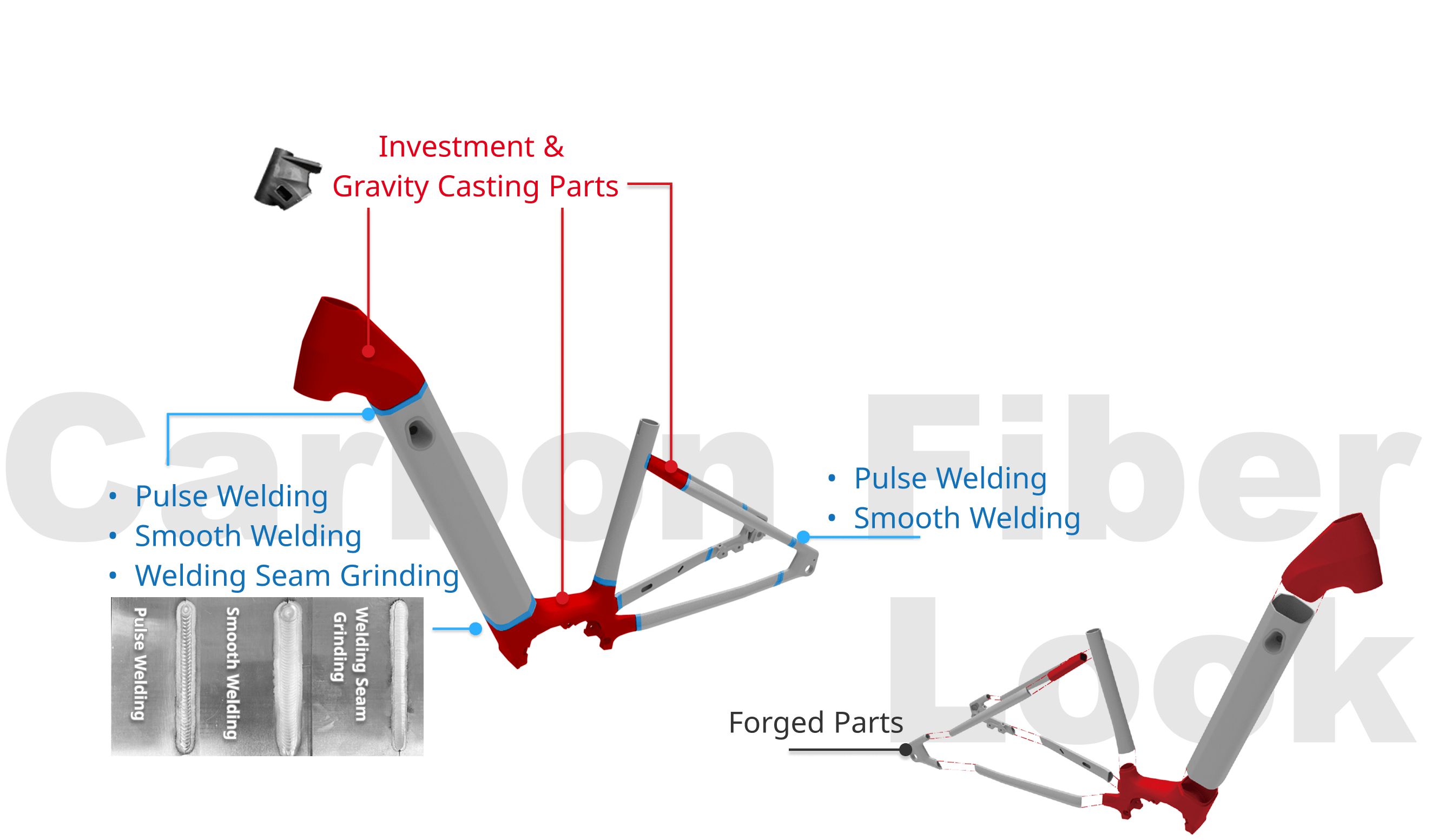

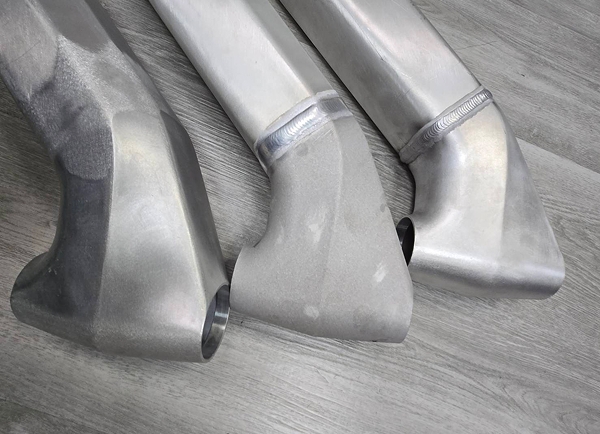

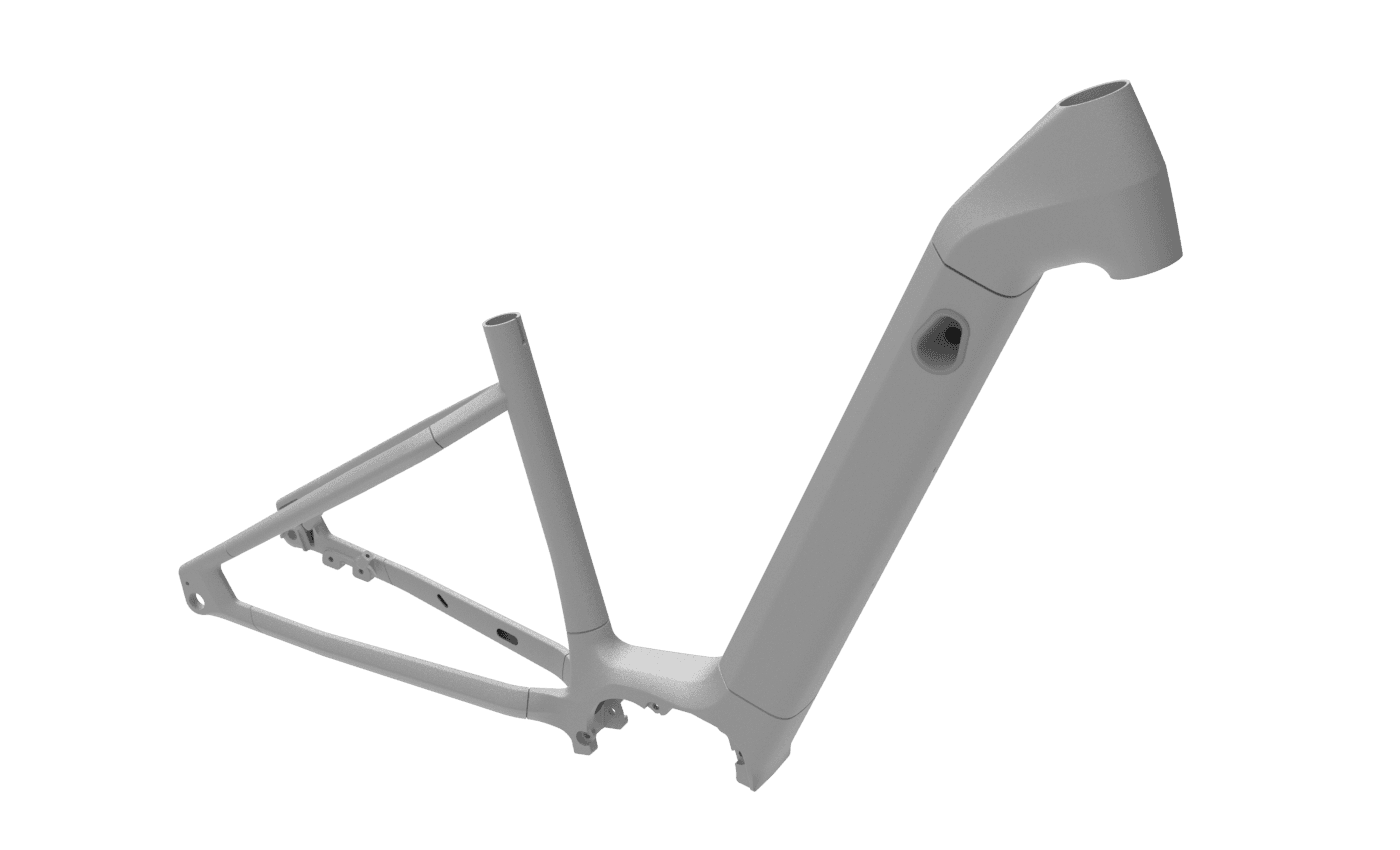

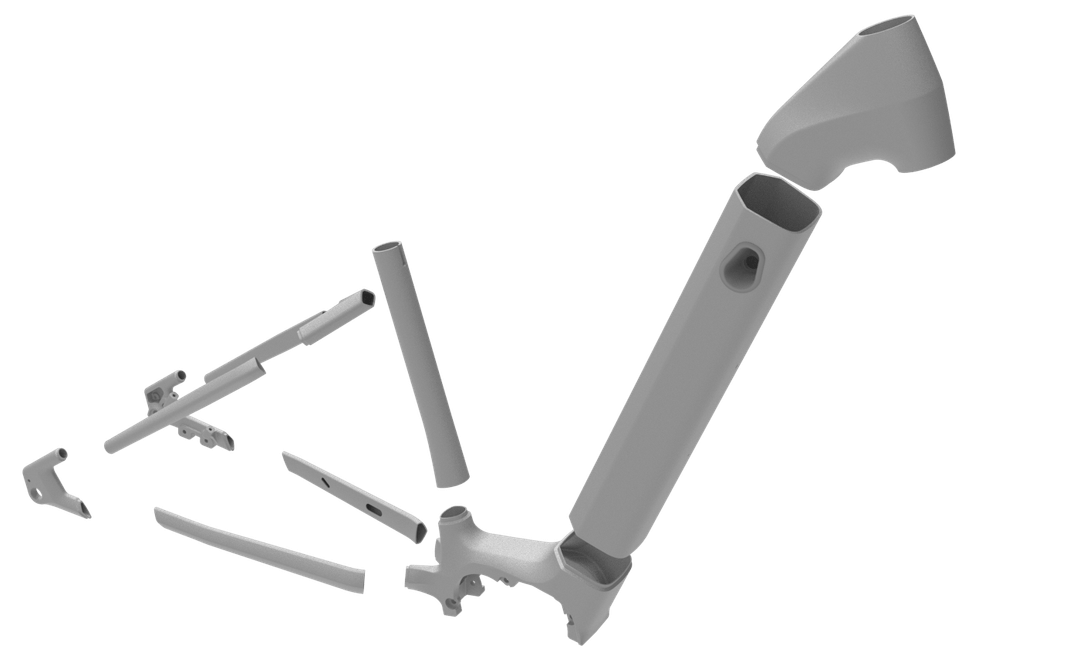

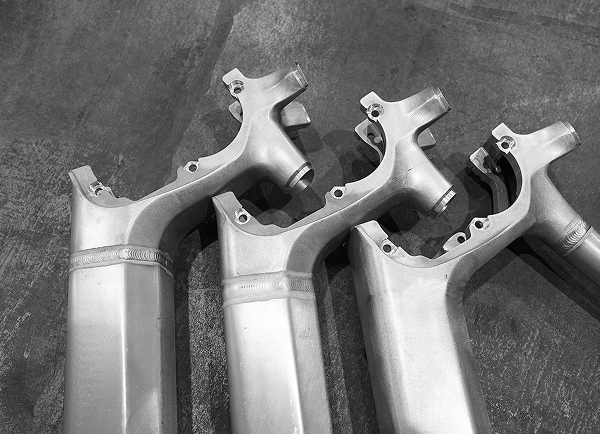

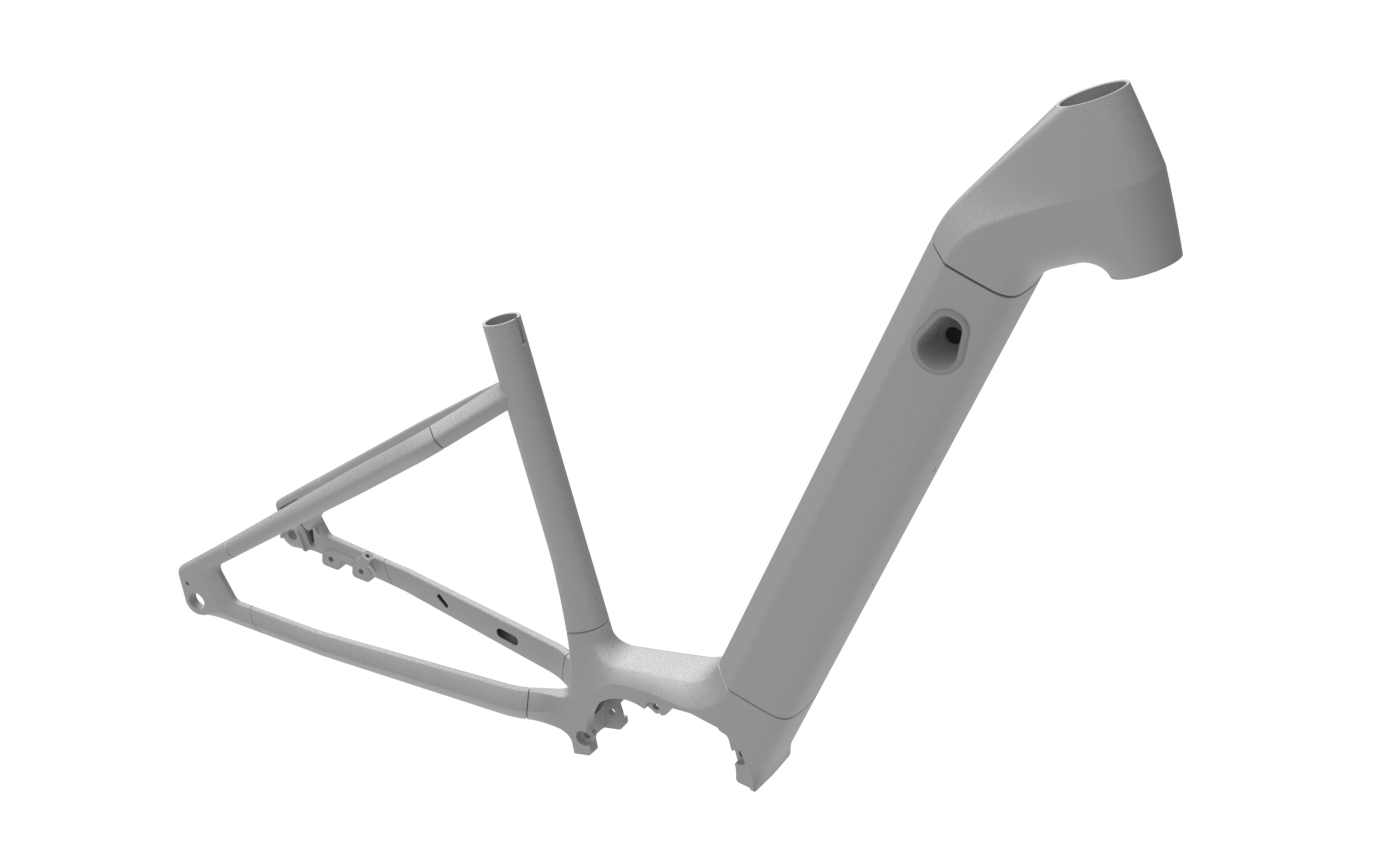

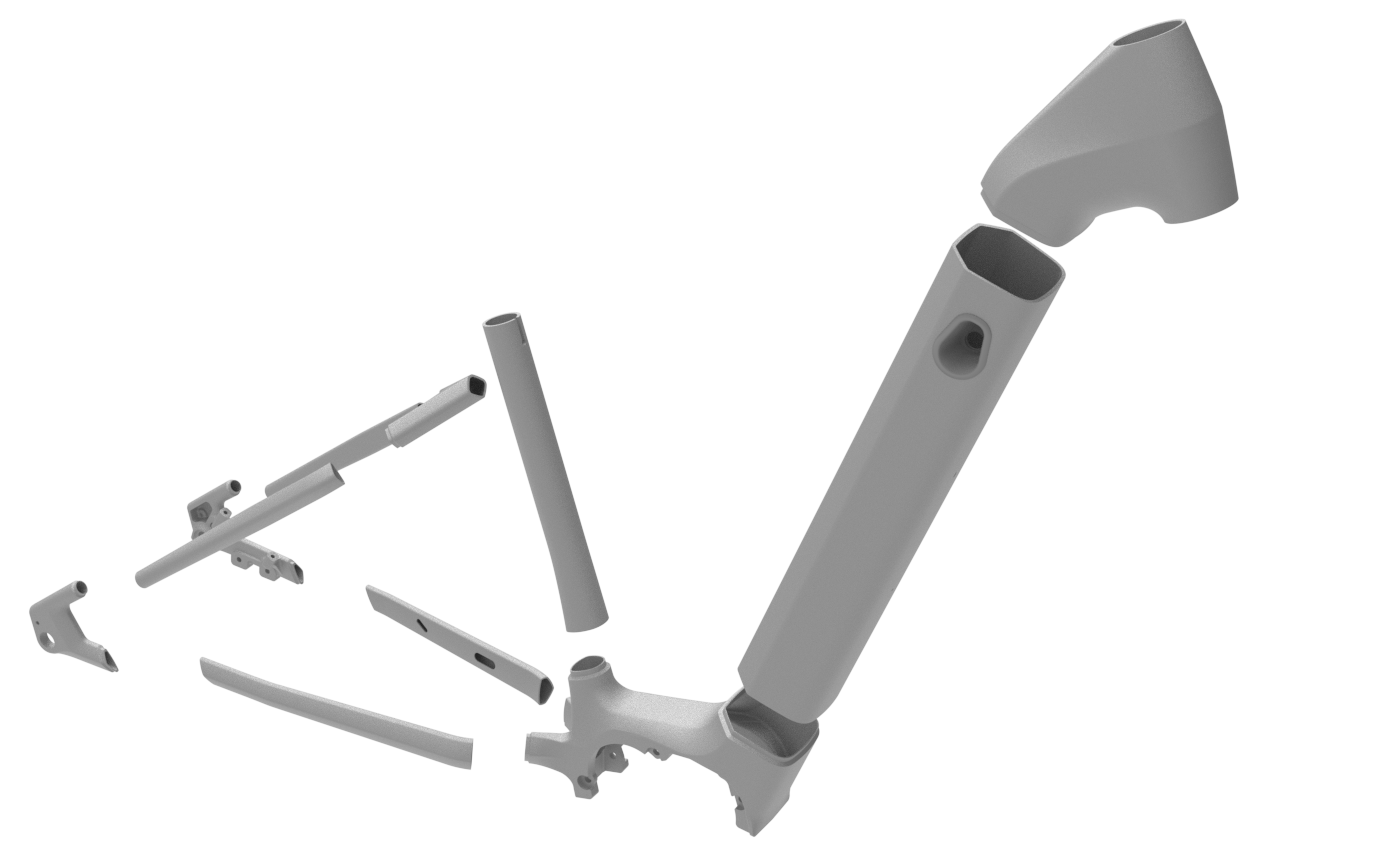

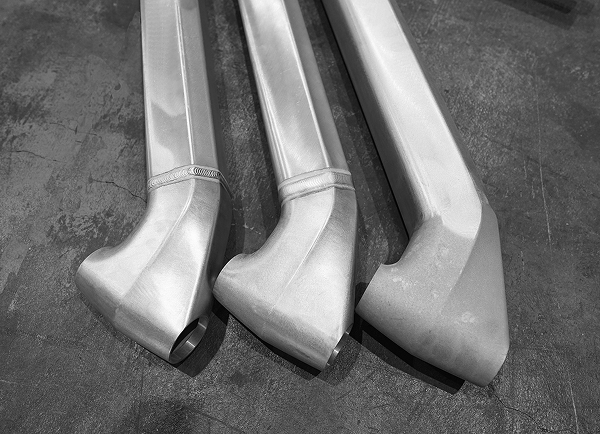

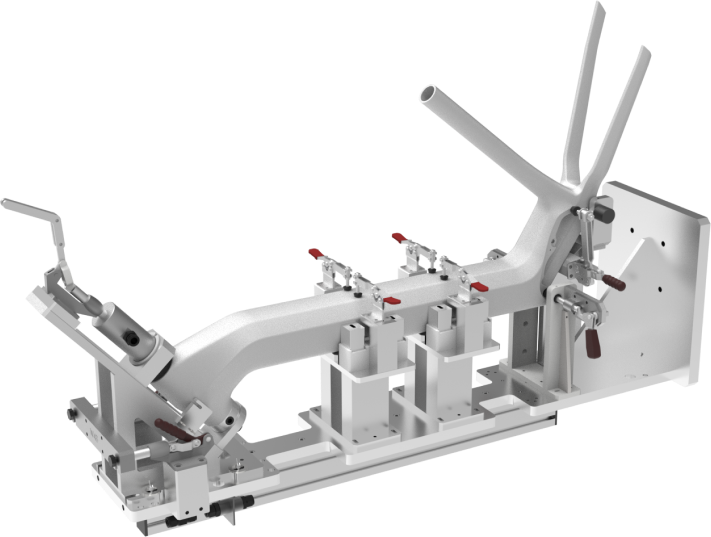

Aluminum Alloy Bike Frame

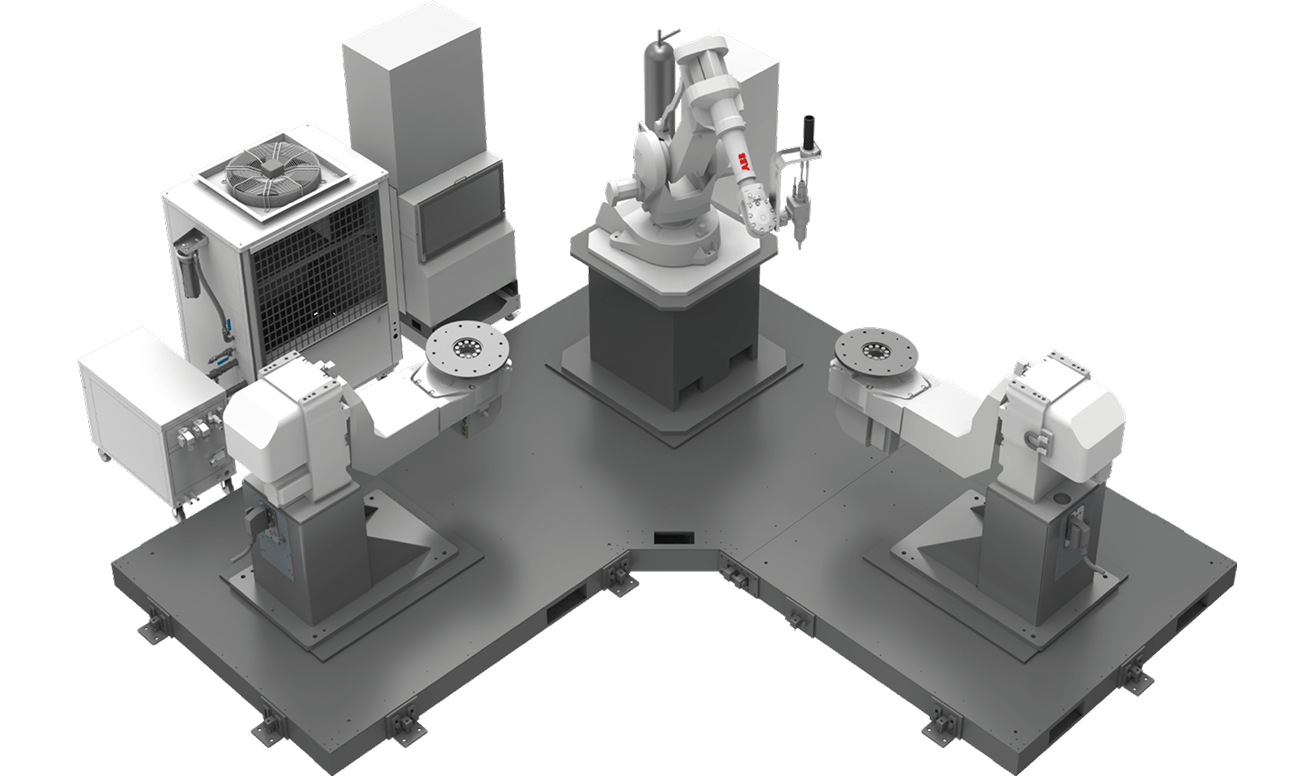

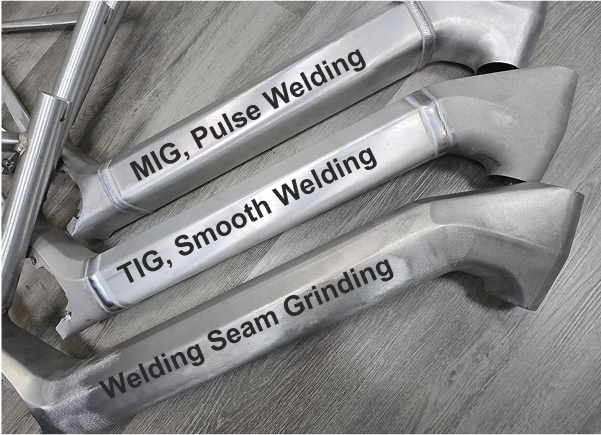

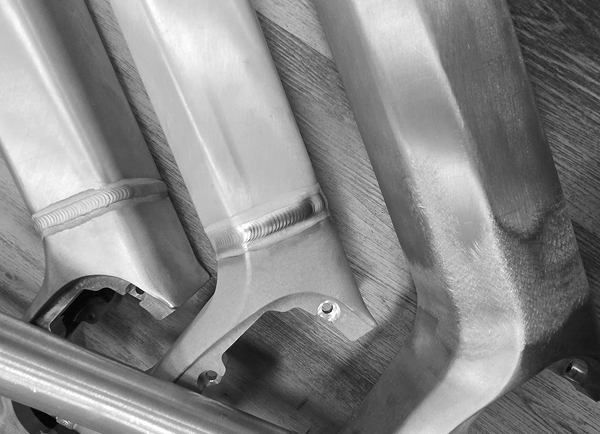

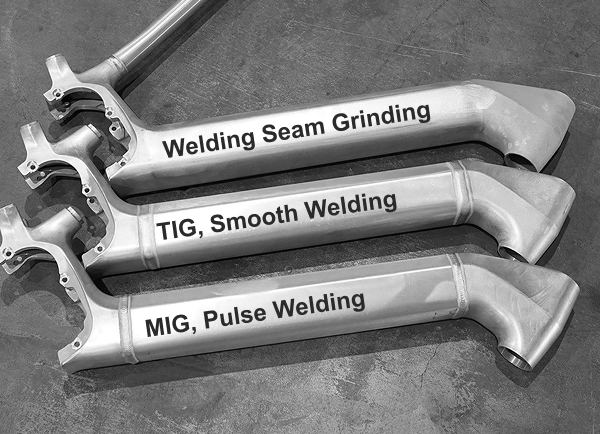

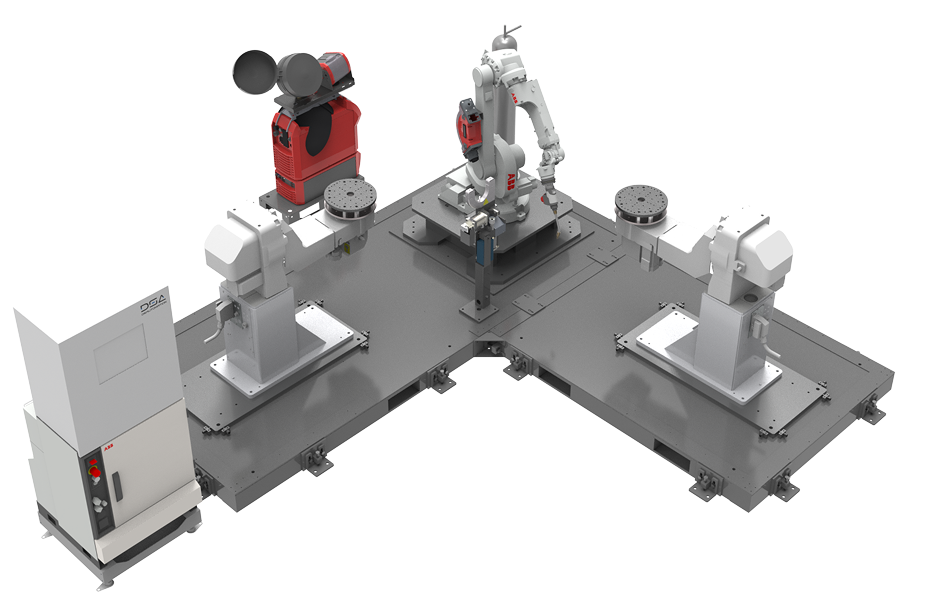

Robotic 3D Laser Cutting, Welding, Grinding

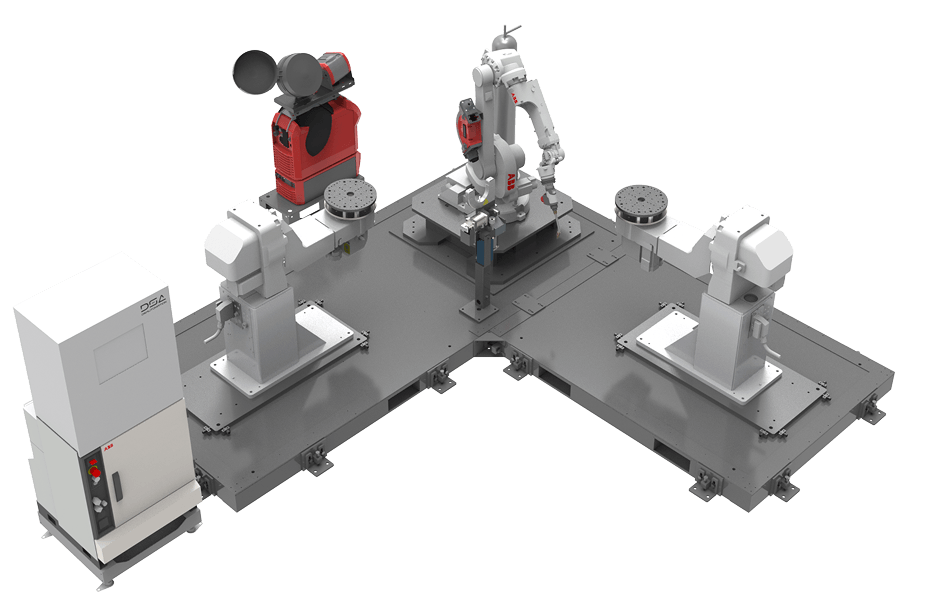

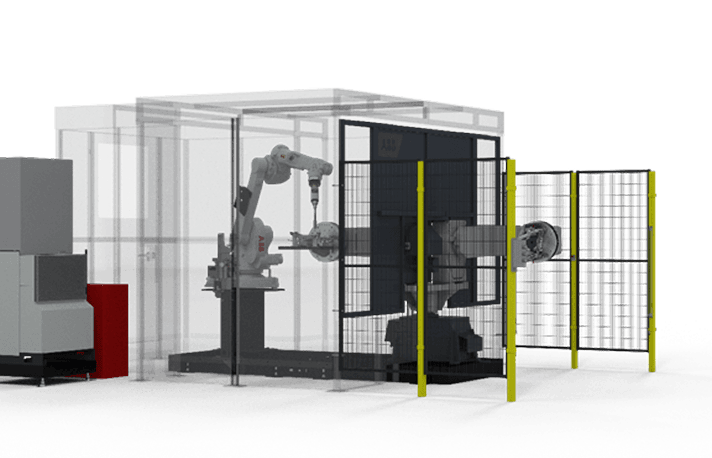

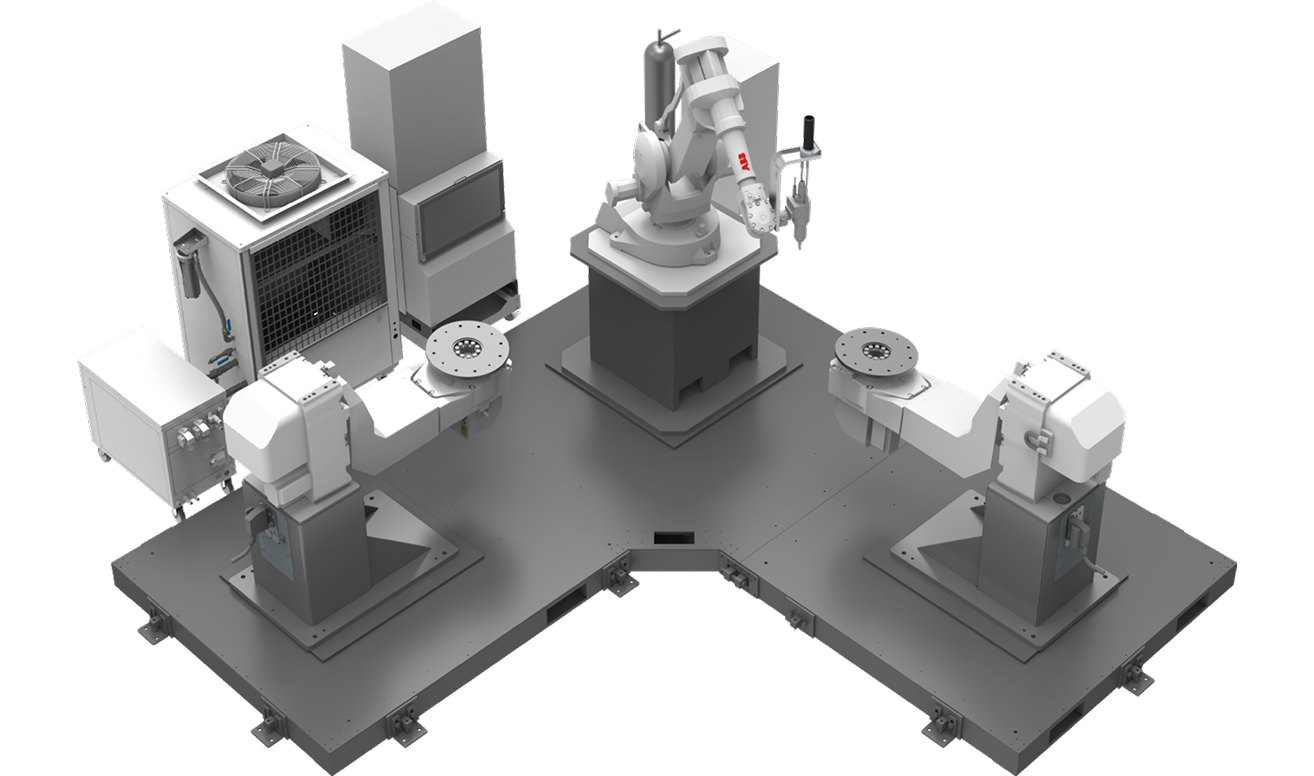

Robotic 3D Laser Cutting

aluminum_banner_logoaluminum_logo
aluminum_1_1

High Accuracy Calibration

TCP & WOBJ

Work Object Coordinate Frames

aluminum_1_2aluminum_1_3

Comparison of 3D Laser Cutting Quality

aluminum_2_1aluminum_2_2aluminum_2_3

360° Circumferential Cutting of Irregular-Shaped Pipes

aluminum_2_4

DTboost

aluminum_2_5

Competitor

Battery Installation Opening

aluminum_2_6

DTboost

aluminum_2_7

Competitor

Important Technical Parameters of the Robot 3D Laser Cutting System

Aluminum Alloy Laser Cutting Reference Data

aluminum_3_1

ABB Robot Accuracy Reference Data

aluminum_3_2
PosDescription
AProgrammed position
BMean position at program execution
APMean distance from programmed position
RPTolerance of position B at repeated positioning
aluminum_3_3
PosDescription
EProgrammed path
DActual path at program execution
ATMax deviation from E to average path
RTTolerance of the path at repeated program execution
DescriptionIRB 2400/10IRB 2400/16
Pose repeatability, RP (mm) 0.030.03
Pose accuracy, APi(mm) 0.030.03
Linear path repeatability, RT (mm)0.110.15
Linear path accuracy, AT (mm)0.330.41
Pose stabilization time, (PSt) to within 0.4 mm of the position (s)0.150.22
