Frictionless Motor System

Frictionless Motor System

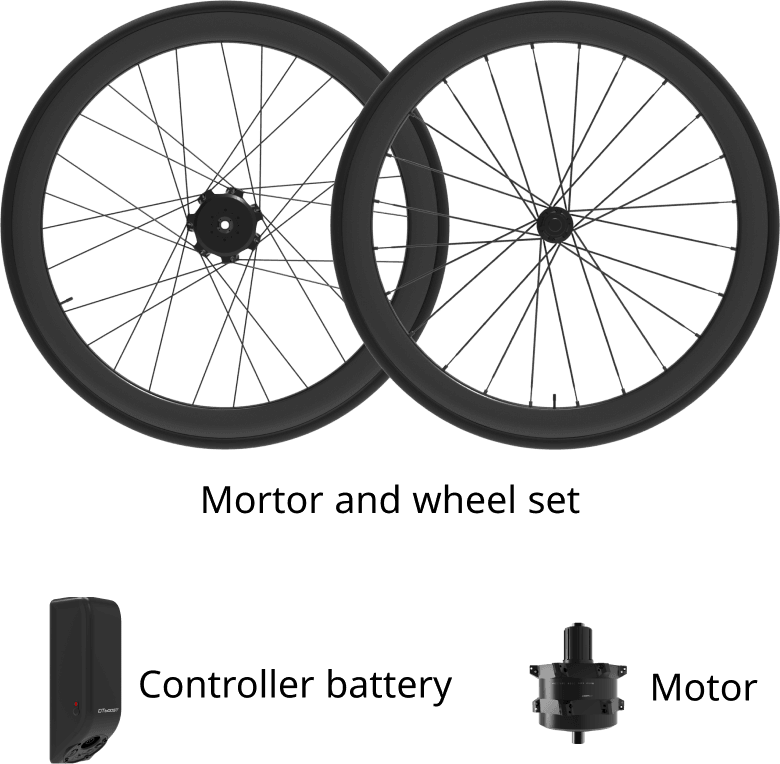

ODM Controller & Motor DIY Kit

DIY Kit Specifications

fms_p1
Motor performance250W | 36V | 23Nm | 25km/hr
Suitable FramesO.L.D 142mm | Thru-axle 12mm
Wheel700C | Carbon Rim | Carbon Spoke
Free Hub bodyShimano HG or Sram XD/XDR
Torque/CadenceIntegrated in freehub
CeramicSpeed BearingOption
Kettle Battery7Ah | 36V
APPDTb e-bike App
fms_pic_1

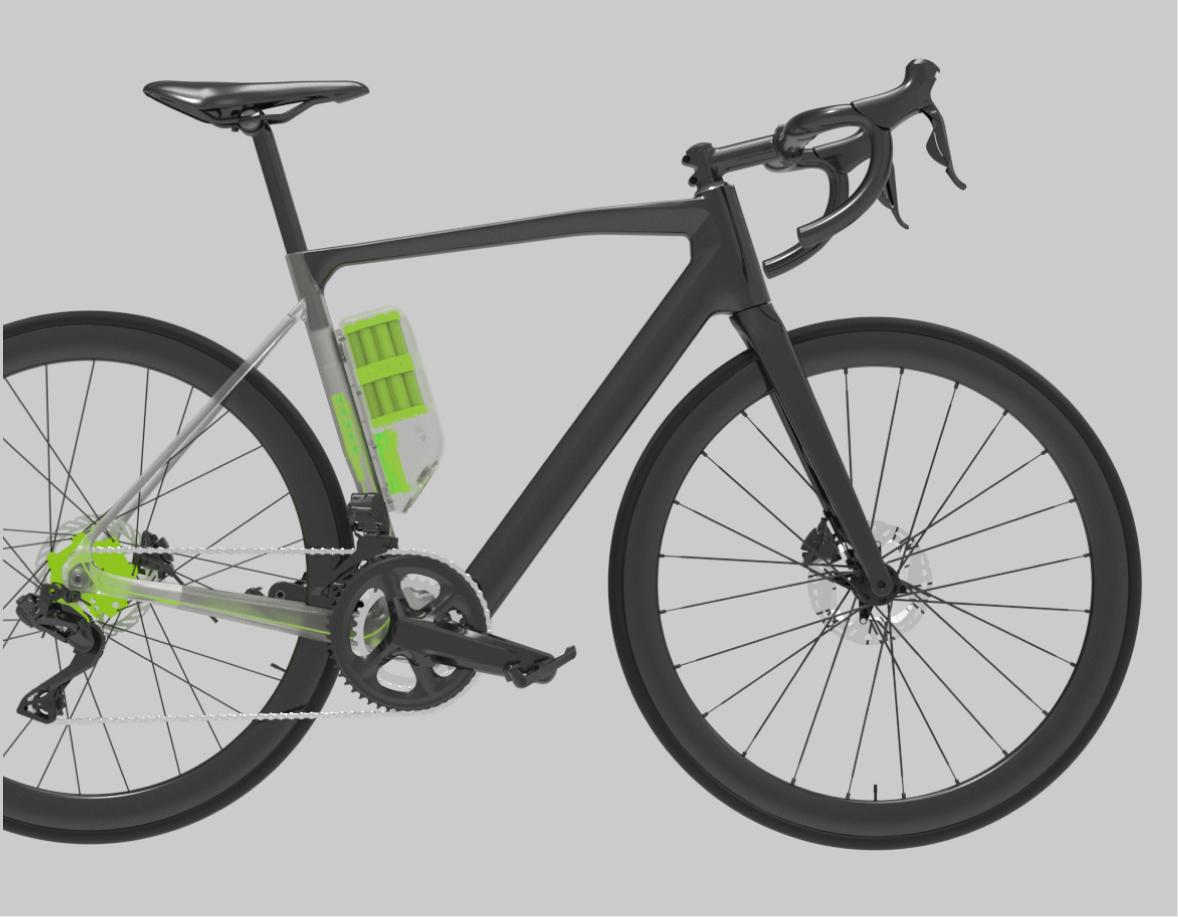

  • The simplest and most stylish DIY conversion kit for E road bikes.
  • The battery features a quick-release design for easy replacement.

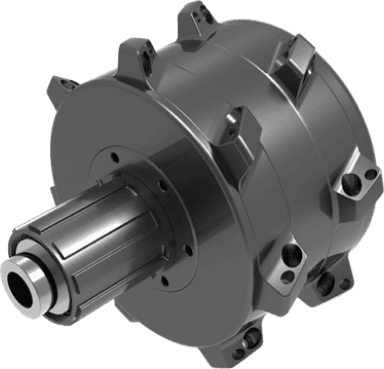

  • The motor is equipped with a torque sensor and DNGage clutch.

ODM Controller & Motor Specifications

fms_p7

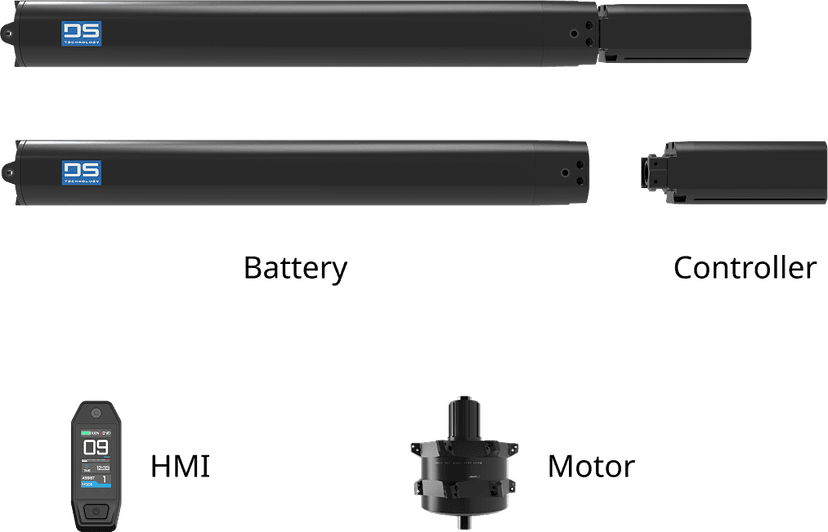

ODM Motor & Controller Specification
Motor Performance250W | 36V | 23Nm | 25km/hr
Suitable FramesO.L.D 142mm ｜ Thru-axle 12mm
Free Hub BodyShimano HG or Sram XD/XDR
Torque/CadenceIntegrated in freehub
ControllerCAN bus｜Di2 Compatibility
Controller SizeCan be customized
ODM Option
HMICAN bus | BLE(APP)
APPDTb e-bike
Motor BearingCeramicSpeed Bearing
fms_pic_2

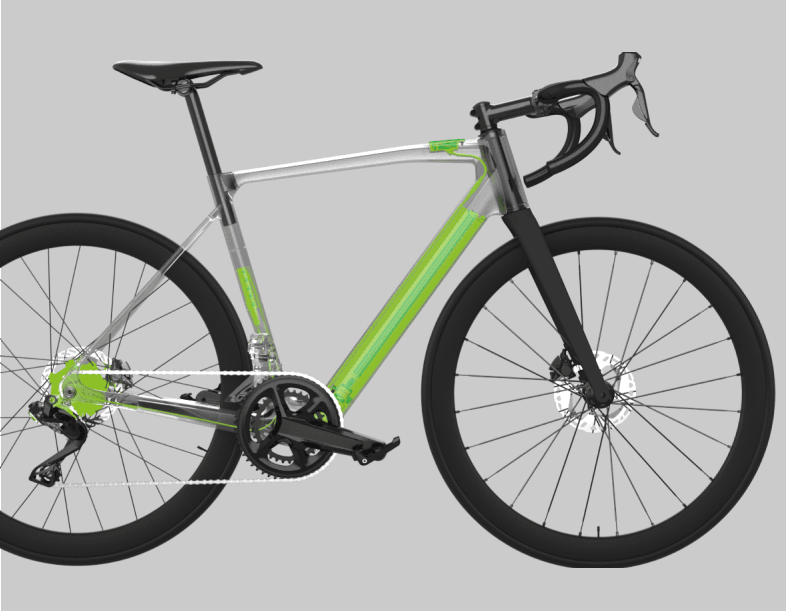

  • The motor is equipped with a torque sensor and a DNGage clutch.
  • Free riding without restrictions, featuring the best three-electric-system components that comply with regulations.
  • APP management system supported.
